Features:

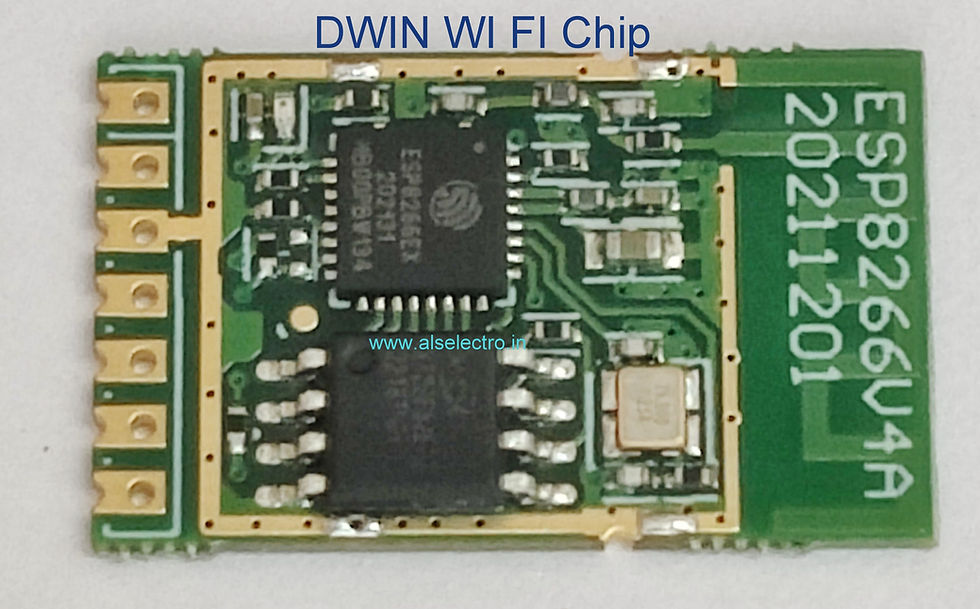

●Main chip ESP8266+4MB Flash
●Support 802.11 (2.4 GHz), frequency range 2.4G ~ 2.5G (2400M ~ 2483.5M)
●The antenna type includes PCB on-board antenna
●Maximum transmit power 14dBm
●Serial transmission rate 921600bps (transmission data rate on the device side)
Can be soldered on to any DWIN Display
DWIN Technology designs the WiFi module dedicated for DGUS, that is WiFi-10.
The network interfaces of DGUS II are open, so WiFi-10 can be directly equipped on the hardware of smart LCM.
Users do not need to do any development of the WiFi module, just need to input the network name and password on the smart LCM and then surf the Internet.
Once the network is successfully connected, the data in the smart LCM can be mapped to the cloud platform to form a data interaction channel.
