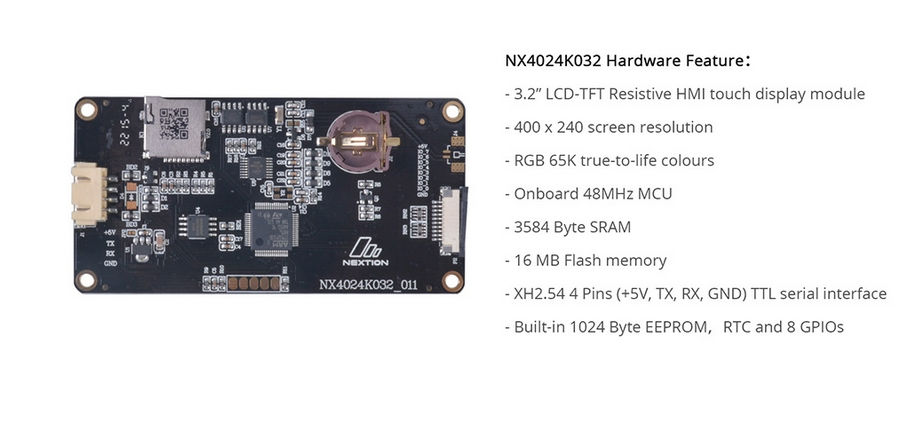

FLASH Memory     16 MB  Store fonts and images
EEPROM      1024 BYTE  User Storage
RAM Memory     3584 BYTE  Store variables
Instruction Buffer 1024 BYTE

Serial Port Mode  TTL
Serial Port       4Pin_2.54mm
Baud Rate max     115200 bps

SD card socket     Yes (FAT32 format), support maximum 32G Micro SD Card
Extended IO     8 Digital extended GPIO
                              IO0-IO7 support input, output and component binding event
                              IO4-IO7 support PWM
RTC               built-in RTC support (Battery type: CR1220)

Operating Voltage  5V
Operating Current  85mA

Resolution     400×240 pixel     Also can be set as 240x400
Touch type     Resistive
Touches     > 1 million
Backlight     LED
Backlight lifetime (Average)     >30,000 Hours
Brightness     180 nit (NX4024K032_011R)
